DNV Type Approval Anti-Corrosion Fixed Mini IR Marine CCTV System
Key Faetures
- Marine-grade IP Camera with wiper system including:
- Stainless steel 316L Enclosure with Powder Coating
- 4MP, 2.8-12mm lens, 4 × optical zoom;
-IR Range up to 60meters
-Optional Heater&fan (only for DC12V)
- DC12V &PoE Power supply
- Accessories including :
-1x KDJ008 ATEx Exe Corrosion Proof JB with powder coating
-1x KDB004T Anti-shake SS316L Wall Mounting Bracket
-1x 1.5meters Explosion Proof Hose with 316L connectors
Application Scenarios
Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port
Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Service
You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
Parameters
| Type |
KDW-EX-VL404IRW02 |
| Material |
Stainless Steel 316L |
| Protection Class |
IP68 |
| Temp.range min |
-40℃ |
| Temp.range max |
+60℃ |
| Vibration(0-100Hz) |
0.7g |
| Video |
IP |
| Operational Areas |
Outdoor |
| Mounting |
Wall mounted |
| Wiper/IR |
Wiper/IR |
| Surface |
powder coating |
| Resolution |
4MP |
| Zoom |
2.8-12mm,4X optical zoom |
| Field of View (H) |
107.4°~39.8° |
| Field of View (V) |
72°~24° |
| Field of View(D) |
140°-40° |
| Image Sensor |
1/1.8"Progressive Scan CMOS |
| Min.illumination |
Color:0.005Lux@(F1.6,AGC ON)B/W:0.0005Lux @(F1.6,AGC ON) |
| CCTV add-on |
WDR,HLC,illegal login,motion detection,line crossing detection ,intrution detection etc |
| Voltage |
PoE/DC12V |
| Net Weight |
6kg |
| Certificates |
DNV TA/ATEX/CE/FCC |
| EX Mark |
Ex 2G Ex db op is IIC T6GbIl 2DEx tb op is IIIC T80℃ Db IP68 IP66 |
| Intelligent Detection(Al) |
Motion Detection/Human Detection |

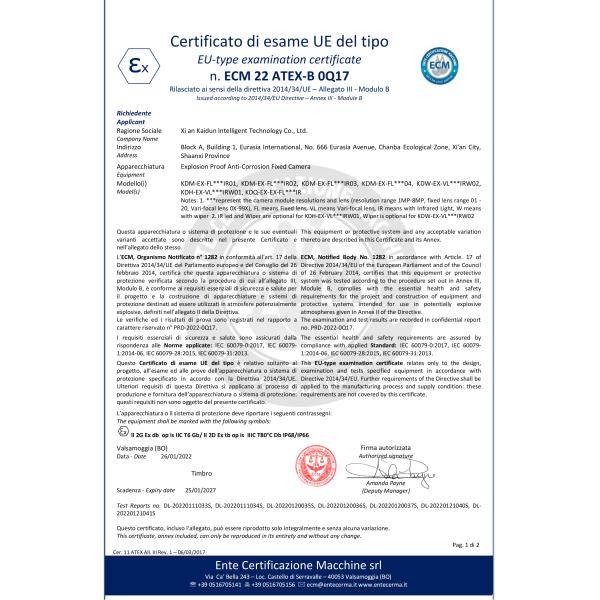

Certificate
Product Tags:
|
|
DNV Type Approval Anti-Corrosion Fixed Mini IR Marine CCTV System Images
|
